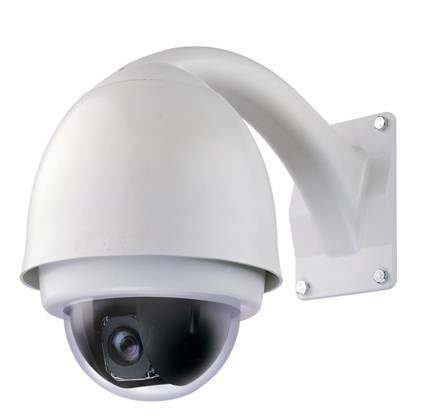

M-104IPS Outdoor network high speed dome camera
|
M-104IPS
Outdoor network high speed dome camera
|
|
Features:
- Connected
directly to Ethernet, carry out long distance transmission
- Embedded
network structure
- Transmitting
quality MPEG4 video image,30 frames/s
- Built-in
Network Server
- RJ45
connector
- Ethernet
PCI, 10 Base-T
- Network
bandwidth adjust function 100~1000Kbps
- Image
and voice store function
- Supporting
recording function
- Support Pelco
controller
|
|
|
Dimension
|
|
|
Camera
specification
|
|
Model
|
M-104IPSC
|
M-104IPSB
|
|
sensor
|
1/4" Sony CCD
|
|
Synchronization
|
Internal
|
|
White
balance
|
Auto/Manual
|
|
Horizontal resolution
|
480TVL
|
|
Min.illumination
|
0.7Lux
|
0.01Lux
|
|
Focal length
|
F=4.1~73.8mm 18x
|
|
Focus & Iris
|
Auto/Manual
|
|
Pan speed
|
0°~300°/s
|
|
Tilt speed
|
0°~120°/s
|
|
Pan range
|
360° continuously
|
|
Tilt range
|
90°
(180°auto overturn)
|
|
Preset
|
128
|
|
|
|
Network
parameter
|
|
PIC
|
Ethernet 10 Base-T
|
|
Operate system
|
Embedded DSP
|
|
Image format
|
MPEG4
|
|
Transmission function
|
30 Frames(NTSC)/25
Frames/s(PAL)
|
|
Resolution
|
– 160×120
QCIF(176×144@PAL,176×112@NTSC)
|
|
– 320×240
CIF(352×288@PAL,352×240@NTSC)
|
|
– 640×480
2CIF(704×288@PAL,704×240@NTSC)
|
|
Surveillance software
|
Special browse software
|
|
Function
|
Remote A/V store
|
|
Remote A/V replay
|
|
Remotion surveillance
|
|
Network
bandwidth:100~1000Kbps
|
|
Software
|
CD will be Sent to
clients
|
|
4-channel、9-channel、16-channel
|
|
|
|
|
|
|

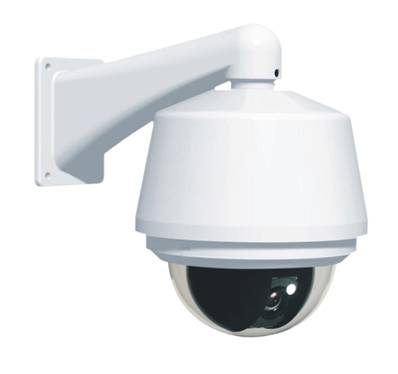

M-302IPS Outdoor network high speed dome camera
|
M-302IPS
Outdoor network high speed dome camera
|
|
|
|
Full D1 Resolution 30 fps
|
|
Dual 10/100 Base T Ethernet
for WAN/LAN
|
|
Remote PAN/TILT/ZOOM
Control
|
|
Network Viewable
through IE Browser
|
|
Multiple IP Users
can Login over the Network
|
|
480 TV Lines
Resolution
|
|
26 X Optical
Zoom
|
|
MPEG4 Compression
|
|
Built-in Heater
& Blower
|
|
Proportional Pan and
Tilt
|
|
80 Different Preset
PTZ Positions
|
|
5 Auto Scanning
Paths
|
|
8 Auto Touring
|
|
5 Auto Pattern Paths
|
|
8 privacy mask zones
|
|
2 Alarm Input and 1
Relay Output
|
|
No Blind Area: 360 º
Continuous Pan Rotation
|
|
0.1º /s pan rotate while
maintain image stability
|
|
180 º continuous
tilt surveillance
|
|
Day and Night Mode
|
|
Support RS485
Control
|
|
Supports
Multiple-Protocol & Various Baud Rates
|
|
Operating
Temperature: -30°C to +50°C RH 95% max
|
|
|
|
Image sensor
|
1/4 Super HAD CCD
|
|
Lens
|
F=4.1 (wide) - 88 mm (Tele)
|
|
Illumination
|
0.01 Lux
|
|
Power
|
AC 24V/ 3A（±20%）(include temperature
control circuit)
|
|
Core Consumption
|
15W
|
|
Heater Consumption
|
35W
|
|
Decode Card
|
Build-in
|
|
Network Video Server
|
Build-in
|
|
Engine
|
stepper motor
|
|
Preset
|
80
|
|
Auto Cruise
|
8
|
|
Auto Scan
|
5
|
|
Auto Pattern
|
5
|
|
Image Quality
|
Six levels (Optional)
|
|
Alarm Input/Output
|
2/1
|
|
Video Display
|
One-window display mode
|
|
Signal Format
|
PAL:625 TV Line, 50F /S
NTSC:525 TV Line, 60F /S
|
|
Resolution
|
D1、HD1、CIF、QVGA、QCIF
|
|
Compression
|
MPEG-4 CBR、MPEG-4 VBR
|
|
Video Speed
|
Rea-time mode:
Pal:1 -25f /s
NTSC:1 -30f /s
|
|
Alarm Relay
|
30VDC 1A ，125V 0.5A
|
|
Auto Lens
|
Adjust speed in accordance with lens
|
|
Auto Rotation
|
Vertical 90º rotates to horizontal 180 º
|
|
Auto Pan Scan
|
360º continuously
|
|
Manual Pan Motion Speed
|
0.1º—120º/S
|
|
Preset Maximum Speed
|
300º
|
|
Manual Tilt Motion
|
0.1º—90º/S
|
|
Manual Tilt Scan Section
|
0º—180º
|
|
Control Mode
|
Network
|
|
Baud Rate
|
1200/2400/4800/9600 (Optional)
|
|
PTZ Scan Accuracy
|
0.06 ± 0.015º
|
|
S/N Ratio
|
> 50dB
|
|
Effective Pixel
|
752（H）× 582（V）
|
|
Horizontal Resolution
|
480TVL
|
|
Fan and Heater
|
Auto/Manual (Default mode: auto)
|
|
Humidity
|
＜90%
|
|
Environment
|
-30 C TO 55 C（Outdoor. Pre-heat needed） -10C TO 50C（Indoor）
|
|
